Inventory

Matrix List

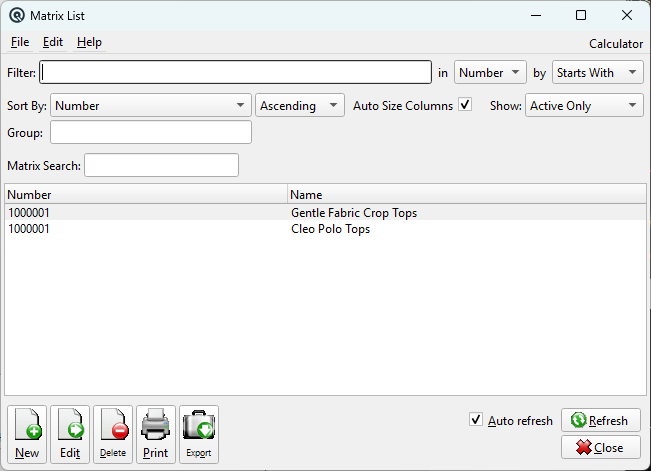

The Matrix List displays all matrix definitions. Matrices define size/color combinations for items (e.g., a T-shirt in S/M/L/XL × Red/Blue/Green). Access from Inventory › Matrices.

List Columns

Name

Matrix name.

Number

Matrix number.

Default Columns

Column	Description
Number	Number.
Name	Name.

Filters

Filter

Quick-search the displayed list. Type text to instantly filter rows by matching against the selected column. Use the in dropdown to choose which column to search, and the by dropdown to switch between Starts With, Contains, or Exact Match.

Tip: If you do not see the column you want to search or view, go to File → Configure to customize which columns are displayed in the list. You can add, remove, and reorder columns to suit your workflow.

Sort Column & Method

Choose the column used to sort the list. The dropdown displays all columns you have chosen to view, including any custom column changes you have made. Use the second dropdown to switch between Ascending and Descending order.

Auto Size Columns

When checked, columns automatically resize to fit their contents each time the list refreshes. This ensures all data is visible without manual adjustment.

When unchecked, column widths are saved between sessions. You can drag column borders to set your preferred widths and they will be remembered the next time you open this screen. This is useful when you want a consistent layout regardless of the data displayed.

Show

Filter records by status. Options include:
• Active Only — Show only active records (default).
• Inactive Only — Show only deactivated records.
• Active & Inactive — Show all records regardless of status.

Matrix Search

A powerful multi-word search across both matrix number and name simultaneously. Type one or more words separated by spaces — every word must match somewhere in the matrix number or name (AND logic). This lets you rapidly narrow down results by combining partial terms.

Example: Typing shirt blue finds matrices where both "shirt" and "blue" appear anywhere in the number or name — matching "T-Shirt Blue/Red/Green" but not "T-Shirt Red Only". The search is case-insensitive and matches partial words, so sh bl works too.

Group

Filter by group membership. Select a group to show only records that belong to that group. Leave blank to show all records.
